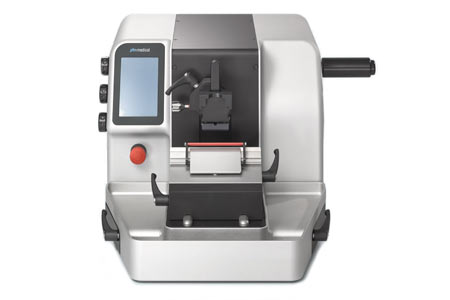

pfm Fully Electronic Rotary Microtome

pfm Fully Electronic Rotary Microtome

Details

  • Ergonomic design
  • Backlash and maintenance free horizontal and vertical cross roller bearing system
  • Smooth running handwheel with removeable handle
  • Handwheel locking system in each position
  • Quick change system for object clamps
  • Ease of object orientation due to tangible zero point setting
  • All electronic settings and functions are operated by touch screen
  • Cutting window
  • Memory function
  • Section Counter
  • Section thickness addition
  • Finger Guard
  • Foot switch

Technical Data

  • Section thickness: 0.5-100 ?m
  • Range: 0.5-10?m in 0.5?m steps/10-20?m in 1?m steps/ 20-50?m in 5?m steps/50-100?m in 10?m steps.
  • Trimming mode: 1-500?m
  • Retraction: 0-100?m in 5?m steps
  • Coarse Feed speed: 1.7mm/s
  • Sectioning Modes: Manual, continuous, single, step
  • Sectioning speed max: 300mm/s
  • Remaining feed indication 1mm horizontal: visual and audible
  • Horizontal range: 30mm
  • Vertical Range: 70mm
  • Object orientation: x and y axis universal 8°, z-axis up to 360°
  • Dimensions: 450 x 530 x 275mm



Sku Description Qty
3006EM pfm Fully Electronic Rotary Microtome 1
